Fuel Electric Polarization Control Furnace Cabinet Parts Customized

Name: Fuel Electric Polarization Control Furnace Cabinet Parts Customized
Brand: Chitherm
Price: 1 USD

Buy cheap Fuel Electric Polarization Control Furnace Cabinet Parts Customized product

Place of Origin : China

Brand Name : Chitherm

MOQ : 1

Price : Negotiable

Packaging Details : Customized

Delivery Time : Customized

Payment Terms : Customized

Supply Ability : 50 Sets/Year

Model Number : 7 passageway

Surface Treatment : Painted

Fuel : Electric

Range of Applications : Industrial

Transport Package : Wooden Packaging

Specification : 800*1850*500mm(W*H*D)

Trademark : Chitherm

Origin : China

HS Code : 8514101000

Customization : Available

Certification : ISO

Customized : Customized

Contact Now

Fuel Electric Polarization Control Furnace Cabinet Parts Customized

Attribute	Value
Surface Treatment	Painted
Fuel	Electric
Range of Applications	Industrial
Transport Package	Wooden Packaging
Specification	8001850500mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Customized	Customized

Product Description

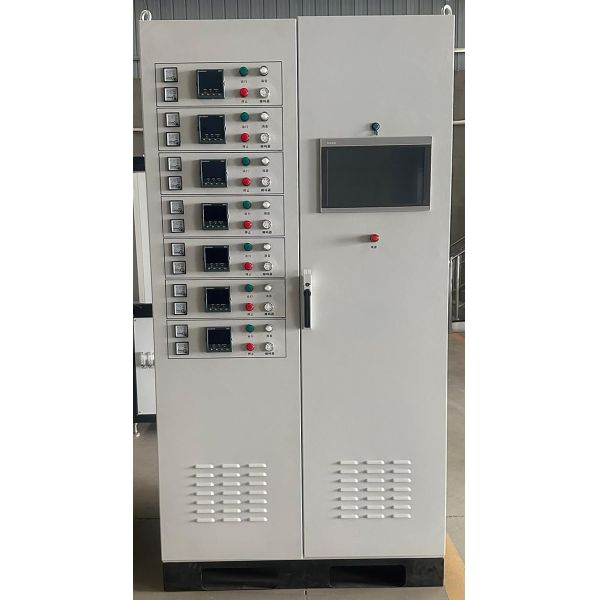

Customized Electric Chitherm Polarization Control Cabinet Fuel Electric for Optimal Performance

1. Basic Configuration

Temperature control channels: 5 + 2, of which 5 channels are used to control the sintering furnace, and the remaining 2 channels are spare.
Temperature control instrument: Eurotherm3504.
Number of instruments: Each control cabinet is equipped with 7 temperature controllers.
External dimensions: 800*1850*500mm(W*H*D).
Appearance Color: Light gray.

Fuel Electric Polarization Control Furnace Cabinet Parts Customized

2. Control System

Control instrument: Controlled by Eurotherm3504 intelligent regulator, it has multiple alarm protection functions such as PID parameter self-tuning, high temperature upper limit alarm, thermocouple failure indication, etc.
Control mode: power adjustment and voltage control.
Over-temperature treatment: When the temperature over-temperature phenomenon occurs, the temperature over-temperature alarm system will immediately send a sound and light alarm signal and cut off the heating at the same time.

3. Delivery List

Name	Main content	Qty.
Control cabinet		1 SET
Temperature controller	Eurotherm3504	1 SET
Power regulator		1 SET
Low-voltage appliances		1 SET
Touch Screen		1 SET
